SF-R Automatic Thermal Shrinkage Packaging Machine

Number of views:
1000

SF-R Automatic Thermal Shrinkage Packaging Machine

is suitable for shrink film packaging of dairy products, milk tea, cosmetics, daily necessities, bowls and noodles.
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Area of application:

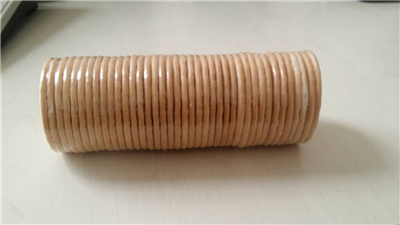

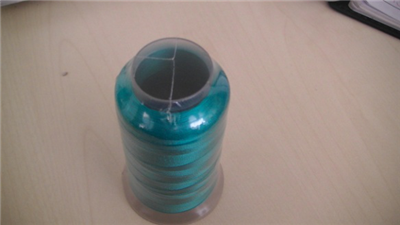

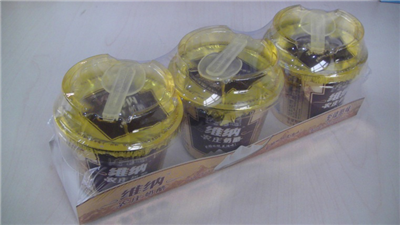

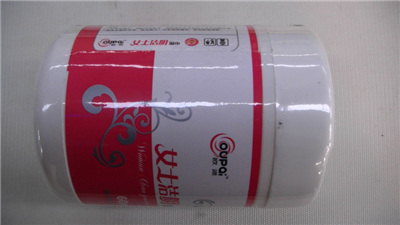

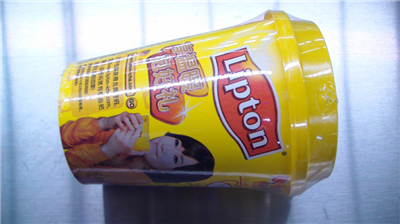

Suitable for shrinkage packaging of dairy products, milk tea, cosmetics, daily necessities, bowls and noodles.



Special recommendation:

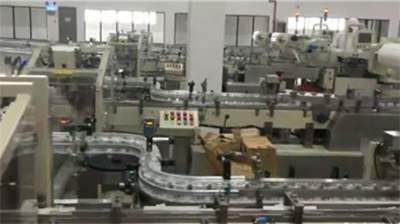

SF-R Automatic Thermal Shrinkage Packaging Machine and SR2400 thermal shrinkage furnace are automatic thermal shrinkage packaging machine production lines designed for assembled line operation and mass packaging.

According to the specific status of the product, an automatic feeding system can be designed to realize full automation without operators. The machine adopts fully enclosed packaging and continuous operation with overall high efficiency.

Songpine is happy to design your own cutomized automation line if required.


Machine features:

1. Large full-color touch screen control system with good appearance and easy operation.

2. Precise motion of packaging by adopting single or multiple servo motors.

3. AC motor is attached with a frequency converter to realize stepless speed control, which can be dynamically adjusted during operation.

4. The new horizontal sealing design allows sealing at a low temperature, reducing packaging material waste and film scalding during power-off.

5. High-efficiency double temperature zone of thermal shrinkage furnace with automatic temperature control.

6. Adopting high-efficiency air circulation to ensure shrinkage quality. Additional functions such as electrostatic adsorption and module operation are optional.


Models SF-R
450/120
SF-R
450/150
SF-R
590/120
SF-R
590/150
SF-R
590/180
SF-R
590/210
Packaging materials max. width (mm)
<450 <450 <590 <590 <590 <590
Product size
L: length (mm)
B: width (mm)
H: height (mm)

L:100-400
B:10-150
H:15-50

L:120-450
B:10-150
H:30-70

L:100-400
B:30-200
H:15-50

L:120-450
B:30-200
H:30-70

L:140-480
B:30-200
H:40-100

L:180-520
B:30-200
H:50-130

Production capacity
(bags/min)
30-150 30-120 30-150 30-120 30-100 30-80

Dimensions (mm)

5000×965×1750 5000×1105×1750
Packaging Materials

Thermal shrinkage films: PVC, POF, etc.

Total weight (kg)

1000 1000 1200 1200 1200 1200
Motor Power
One packaging machine motor 1.1KW; one film motor 0.75KW
Electric heating power
450W*2
400W*4
Power supply

For packaging machine is single-phase 220V, 50HZ;

For thermal shrinkage furnace is three-phase 380V, 50HZ

Total power

For packaging machine is 4.5KW;

For thermal shrinkage furnace is 16.5 KW
