SF-A Automatic Flow Pack Packaging Machine
Tel: +86-532-89653206 / 89653208
E-mail: songben@qdsongben.com
Area of application:

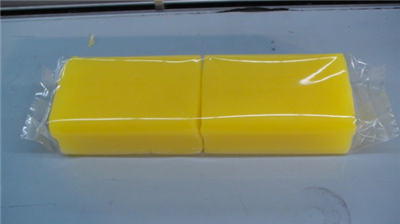

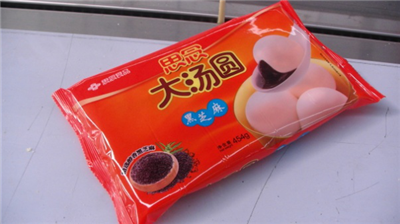

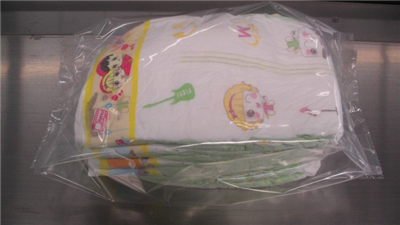

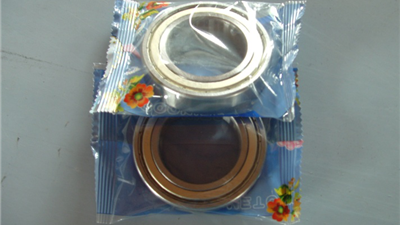

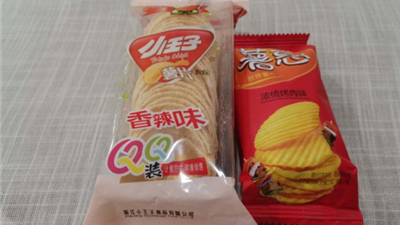

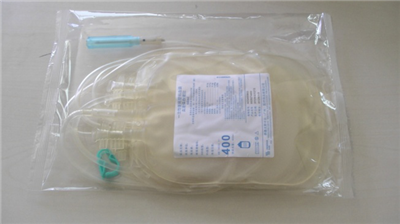

Suitable for the packaging of small solid objects in food, daily necessities, chemical, pharmaceutical, hardware and other industries.
Models
|
SF-A1 450/99 |
SF-A1 450/99-2 |
SF-A1 450/120 |
SF-A1 450/150 |
SF-A1 590/120 |
SF-A1 590/150 |
SF-A1 590/180 |
|||||
Packaging materials max. width (mm)
|
<450 | <450 | <450 | <450 | <590 | <590 | <590 | |||||
Product Size
L: length (mm)
B: width (mm)
H: height (mm)
|
L:90-400 B:10-150 H:5-40 |
L:65-180 B:10-150 H:5-40 |
L:100-400 B:10-150 H:10-60 |
L:120-450 B:10-150 H:30-75 |
L:100-400 B:30-200 H:10-60 |
L:120-450 B:30-200 H:30-75 |
L:140-480 B:30-200 H:40-100 |
|||||
Production capacity
(bags/min)
|
40-180 | 60-250 | 40-180 | 40-150 | 40-180 | 40-150 | 40-120 | |||||
Dimensions (mm) | 5000×965×1750 | 5000×1105×1750 | ||||||||||
Packaging materials | Composite film suitable for heat-sealing packaging: paper/PE, OPP/PE, PT/PE, AL/PE, etc. | |||||||||||
Total weight (kg) | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 | |||||
Motor power | One packaging machine motor 1.1KW; one film motor 0.75KW | |||||||||||
Electric heating power | 450W*2 400W*4 |
450W*2 400W*8 |
450W*2 400W*4 |
|||||||||
Power supply | Single-phase 220V,50HZ | |||||||||||
Total power | 4.5KW | 6.1KW | 4.5KW | 4.5KW | 4.5KW | 4.5KW | 4.5KW |
According to the different packaging materials and packaging requirements, the specific technical parameters will be changed, and the final technical parameters confirmed by both parties shall prevail.
