SF-J Automatic Flow Pack Packaging Machine

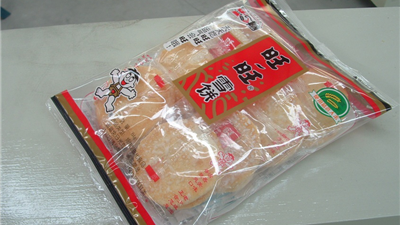

Suitable for multi-packing of snow rice crackers, senbei, quick-frozen steamed buns, steamed bun rolls, steamed buns, family packaged egg yolk pie, family packaged French bread and long bar-shaped products.
Tel: +86-532-89653206 / 89653208
E-mail: songben@qdsongben.com
Area of application:
Suitable for multi-packing of snow rice crackers, senbei, quick-frozen steamed buns, steamed bun rolls, steamed buns, family packaged egg yolk pie, family packaged French bread and long bar-shaped products.
Special recommendation:
This machine is specially designed for family package of greater sized products, with high stability and reliability, great performance. less noice and easy maintenance.
Machine features:
1. Using one or two servo motor, the control is more precise and realize stepless speed control, which can be dynamically adjusted during operation.
2. Adopting a large full-colored touch screen HMI which realize the storage and recall of packaging data (recipe), automatic adjustment, tracking, finding the cut point, alarm warning, fault indication, accumulative packaging counting, automatic display of bag length, speed, and accurate cutting.
3. Adopting photoelectric detection and two-way tracking can effectively eliminate packaging errors and avoid material waste.
4. The new horizontal sealing design allows sealing at a low temperature, reducing packaging material waste and film scalding during power-off.
5. The bag former can be adjusted with long and short pitch settings, convenient for product change.
6. The overall appearance of the machine is simple and tidy, with synchronous belt transmission, less noise and less vibration.
Models | SF-J 590/120 |
SF-J 590/150 |
SF-J 590/180 |
SF-J 680/180 |
Packaging materials max. width (mm) | <590 | <590 | <590 | <680 |
Product Size
L: length (mm)
B: width (mm)
H: height (mm)
|
L:100-400 B:30-200 H:10-60 |
L:120-450 B:30-200 H:30-75 |
L:140-480 B:30-200 H:40-100 |
L:140-480 B:30-220 H:40-100 |
Production capacity
(bags/min)
|
20-60 | 20-60 | 20-60 | 20-60 |
Dimensions (mm) | 5000×1105×1750 | 5000×1200×1750 | ||
Packaging materials | Composite film suitable for heat-sealing packaging: paper/PE, OPP/PE, PT/PE, AL/PE, etc. | |||
Total weight (kg) | 1200 | 1200 | 1200 | 1300 |
Motor power | One packaging machine motor 1.5KW; one film motor 0.75KW | |||
Electric heating power | 450W*2 400W*4 |
|||
Power supply | Single-phase 220V,50HZ | |||
Total power | 5KW |
According to the different packaging materials and packaging requirements, the specific technical parameters will be changed, and the technical parameters confirmed by both parties shall prevail.
