Sf-cxh Automatic High-Speed Rotary Box Motion Packaging Machine

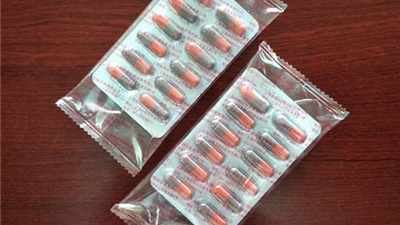

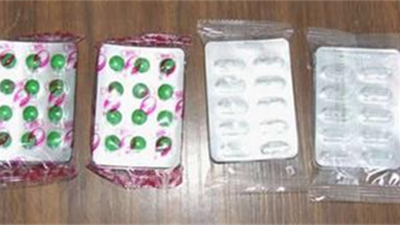

Suitable for packaging pharmaceutical tablets, medical supplies, and pills.

Phone:+86-532-89653206/89653208

Email:songben@qdsongben.com

Online message

Main features:

1. The packaging machine’s exterior features a sandblasted finish made from 304 stainless steel, matching the surface treatment commonly used in mainstream European equipment. This gives it a high-end appearance that is not overly dazzling.

2. The electrical control section of the packaging system employs a motion controller and full-servo drive. The product input conveyor, film feeding system, and horizontal sealing system are each controlled by separate servo motors.

3. The connected loading device is equipped with high- and low-position detection functions. When the feed material reaches the high position (accumulation), the device should automatically collect the incoming material from the front end (without damaging the drug plates) and stop feeding. After the feed material has been at the low position (insufficient input) for a certain period, the machine will stop and sound a siren to issue a warning.

4. The connected loading device features both manual and automatic functions.

5. The size of the loading device is adjustable via the handle, making product changes quick and convenient.

6. The loading device is equipped with a cylinder. When the material becomes blocked, the cylinder can raise the discharge device to facilitate unloading.

7. The pushrod features a quick-release design. This makes replacement faster and more convenient when product height varies significantly or the pushrod is damaged.

8. The conveyor chain is equipped with a protective guard to prevent operators from being cut by the chain.

9. The packaging machine features a dual-film-hanging system with an automatic film-splicing function, enabling film replacement without stopping the machine.

10. When using film splicing on this machine, the film connecting strip is equipped with an automatic product rejection function.

11. The machine is equipped with an automatic rejection function for uncut bags and empty bags. It also features a backup loading device that can load products into empty pushers when products are missing.

12. The vertical sealing mechanism employs three sets of mechanisms to ensure sealing quality. The pneumatic opening and closing design prevents the packaging film from being scorched.

13. The horizontal sealing heating roller uses a water circulation system to prevent burns to the drug plates caused by high temperatures in the event of a power failure.

14. The horizontal sealing mechanism adopts a rotating box motion design, offering a more reliable structure and faster packaging.

15. The activity control panel is suspended, making operation more convenient.

16. It features a separate electrical control box with excellent sealing, clear identification, and cooling functions.

17. The mechanical transmission box features a uniform layout, a simple structure, clear markings, and ease of daily maintenance.

18. The packaging machine is manufactured in compliance with relevant safety standards and regulations. All exposed transmission areas are equipped with safety guards to ensure the safety of both the equipment and the operator.

Model	SF-CXH3 450/150-2	SF-CXH3 590/150-2		SF-CXH3 450/150-4
Maximum width of packaging material (mm)	<420	<560		<420
Product dimensions L: Bag length (mm) B: Object width (mm) H: Object height (mm)	L: 130–190 (optimal package length range) B:30-150 H:30-60 (Width height <150)	L: 150-210 (optimal package length range) B:30-170 H:30-60 (Width height <150)		L: 115–140 (optimal package length range) B:30-150 Height: 10-30 (Width height <150)
Production capacity (Packets/minute)	40-200 (optimal packet length range)	40-200 (optimal packet length range)		40–300 (optimal packet length range)
Dimensions (mm)	5500 × 1200 × 1800 (4-meter conveyor) (Provide a floor plan based on the customer’s production site and requirements)
Packaging materials	Composite films suitable for heat-sealing packaging: paper/PE, OPP/PE, PT/PE, AL/PE, and others.
Total weight (kg)	1200		1300
Motor power	One packaging machine: 1.5 kW; one film motor: 0.75 kW; one input conveyor motor: 0.75 kW.
Electric heating power	450W, 2 (for vertical sealing); 350W, 2 (for vertical sealing and ironing) 400W, 8 (for horizontal sealing)
Power supply	Single-phase 220V, 50Hz
Total power	8 kilowatts		8 kilowatts
